Query and transform data

FojiSoft supports many types of datasources. Data source queries return data that FojiSoft can transform and visualize. Each data source uses its own query language, and data source plugins each implement a query-building user interface called a query editor.

About queries

FojiSoft panels communicate with data sources via queries, which retrieve data for the visualization. A query is a question written in the query language used by the data source.

You can configure query frequency and data collection limits in the panel’s data source options. FojiSoft supports up to 26 queries per panel.

Important: You must be familiar with a data source’s query language. For more information, refer to Data sources.

Query editors

Each data source’s query editor provides a customized user interface that helps you write queries that take advantage of its unique capabilities.

Because of the differences between query languages, each data source query editor looks and functions differently. Depending on your data source, the query editor might provide auto-completion features, metric names, variable suggestions, or a visual query-building interface.

For details on a specific data source’s unique query editor features, refer to its documentation.

Query syntax

Each data source uses a different query languages to request data. For details on a specific datasource’s unique query language, refer to its documentation.

PostgreSQL example:

style='box-sizing: border-box;tab-size: 4;hyphens: none;border-radius: 5px'>style='font-size:10.5pt;font-family:Consolas;color:#454554;background:#F4F4F6'>SELECT hostname FROM host WHERE region IN($region)

PromQL example:

style='box-sizing: border-box;tab-size: 4;hyphens: none;border-radius: 5px'>style='font-size:10.5pt;font-family:Consolas;color:#454554;background:#F4F4F6'>query_result(max_over_time(<metric>[${__range_s}s]) != <state>)

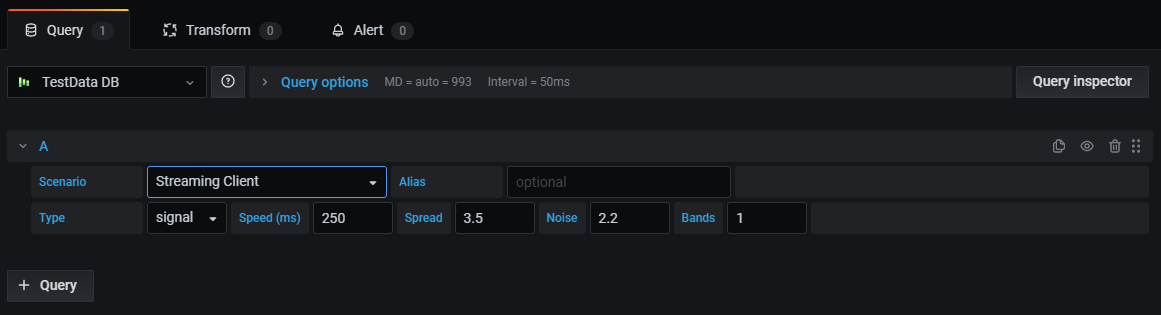

Navigate the Query tab

A panel’s Query tab consists of the following elements:

  • Data source selector: Selects the data source to query.
  • Query options: Sets maximum data retrieval parameters and query execution time intervals.
  • Query inspector button: Opens the query inspector panel, where you can view and optimize your query.
  • Query editor list: Lists the queries you’ve written.
  • Expressions: Uses the expression builder to create alert expressions.

Add a query

A query returns data that FojiSoft visualizes in dashboard panels. When you create a panel, FojiSoft automatically selects the default data source.

To add a query:

  1. Edit the panel to which you’re adding a query.
  2. Click the Query tab.
  3. Click the Data source drop-down menu and select a data source.
  4. Click Query options to configure the maximum number of data points you need.
  5. Write the query using the query editor.
  6. Click Apply.

FojiSoft queries the datasource and visualizes the data.

Manage queries

FojiSoft organizes queries in collapsible query rows. Each query row contains a query editor and is identified with a letter (A, B, C, and so on).

You can:

Query options

Click Query options next to the data source selector to see settings for the selected data source. Changes you make here affect only queries made in this panel.

FojiSoft sets defaults that are shown in dark gray text. Changes are displayed in white text. To return a field to the default setting, delete the white text from the field.

Panel data source queryoptions include:

·      Maxdata points: If the data source supports it, this sets the maximum number of data points for each series returned. If the query returns more data points than the max data points setting, then the data source reduces the number of points returned by aggregating them together by average, max, or another function.

You can limit the number of points to improve query performance or smooth the visualized line. The default value is the width (or number ofpixels) of the graph, because you can only visualize as many data points as the graph panel has room to display.

With streaming data, FojiSoft uses the max data points value for the rolling buffer. Streaming is a continuous flow of data, and buffering divides the stream into chunks. For example, Loki streams data in its livetailing mode.

·      Min interval: Sets a minimum limit for the automatically calculated interval, which is typically the minimum scrape interval. If a data point is saved every 15 seconds, you don’t benefit from having an interval lower than that. You can also set this to a higher minimum than the scrape interval to retrieve queries that are more coarse-grained and well-functioning.

·      Interval: Sets a time span that you can use when aggregating or grouping data points by time.

FojiSoft automatically calculates an appropriate interval that you can use as a variable in templated queries. The variable is measured in either seconds ($__interval) or milliseconds ($__interval_ms).

Intervals are typically used in aggregation functions like sum or average. For example, this is a Prometheus query that uses the interval variable: rate(http_requests_total[$__interval]).

This automatic interval is calculated based on the width of the graph. As the user zooms out on a visualization, the interval grows, resulting in a more coarse-grained aggregation. Likewise, if the user zooms in, the interval decreases, resulting in a more fine-grained aggregation.

·      Relative time: Overrides the relative time range for individual panels,which causes them to be different than what is selected in the dashboard timepicker in the top-right corner of the dashboard. You can use this to show metrics from different time periods or days on the same dashboard.

Note: Panel time overrides have no effect when the dashboard’s time range is absolute.

·       Time shift: Overrides the time range for individual panels by shifting its start and end relative to the timepicker. For example, you can shift the time range for the panel to be two hours earlier than the dashboard time picker.

Note: Panel time overrides have no effect when the dashboard’s time range is absolute.

·       Cache timeout: (Visible only if available in the data source) Overrides the default cache timeout if your time series store has a query cache. Specify this value as a numeric value in seconds.
